Brief description of equipment
| Capacity | 120PPM |
|---|---|
| Operating Voltage | AC380V±10%, 50Hz |
| working pressure | 0.4-0.6MPa |
| Voltage measurement |
Measuring range: DC0-5000mV Measurement accuracy: ±0.2mV (34465A) Measurement accuracy: ±0.1mV (34470A) Resolution: 0.01mV |
| Internal resistance measurement |
Measuring range: 3mΩ/30mΩ/300mΩ Measurement accuracy: ±0.5%rdg. ±5dgt. Resolution: 0.1μΩ/1μΩ/10μΩ |
| Adapt to the product | 26700/18650/21700 |
| Equipment size | 11236x7732x2105mm |
| equipment weight | 18000kg |

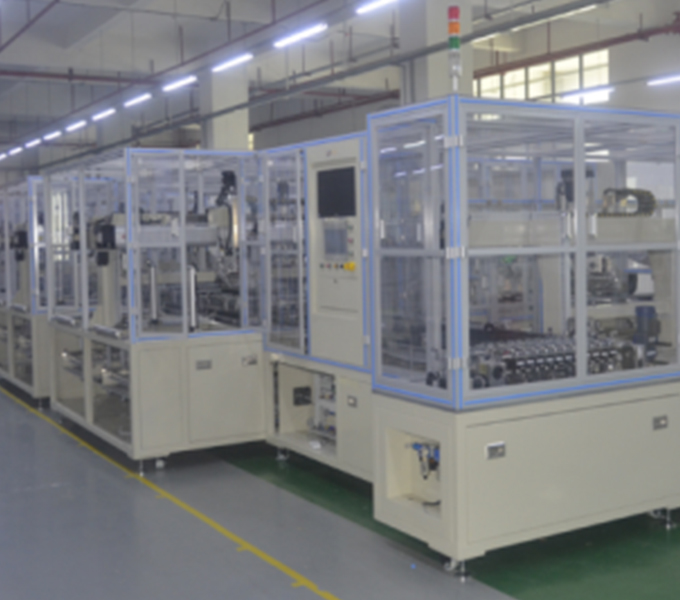

Cylindrical battery DCIR test equipment
1. This machine is suitable for automatic DCIR testing of cylindrical batteries; 2. Connecting to the logistics line, the entire pallet is automatically loaded and scanned; 3. DCIR is automatically completed for the entire plate, which is fast and reliable; 4. Automatically unloading
Cylindrical battery sorting machine
1. This machine is suitable for automatic OCV testing/sorting of cylindrical batteries; 2. Docking the logistics line, automatically loading the entire pallet and scanning codes; 3. OCV completes the test automatically, fast and reliable; 4. Automatically completes the production data information Binding, automatic sorting; 5. Sorting level: 10+1; 6. Automatic blanking;
